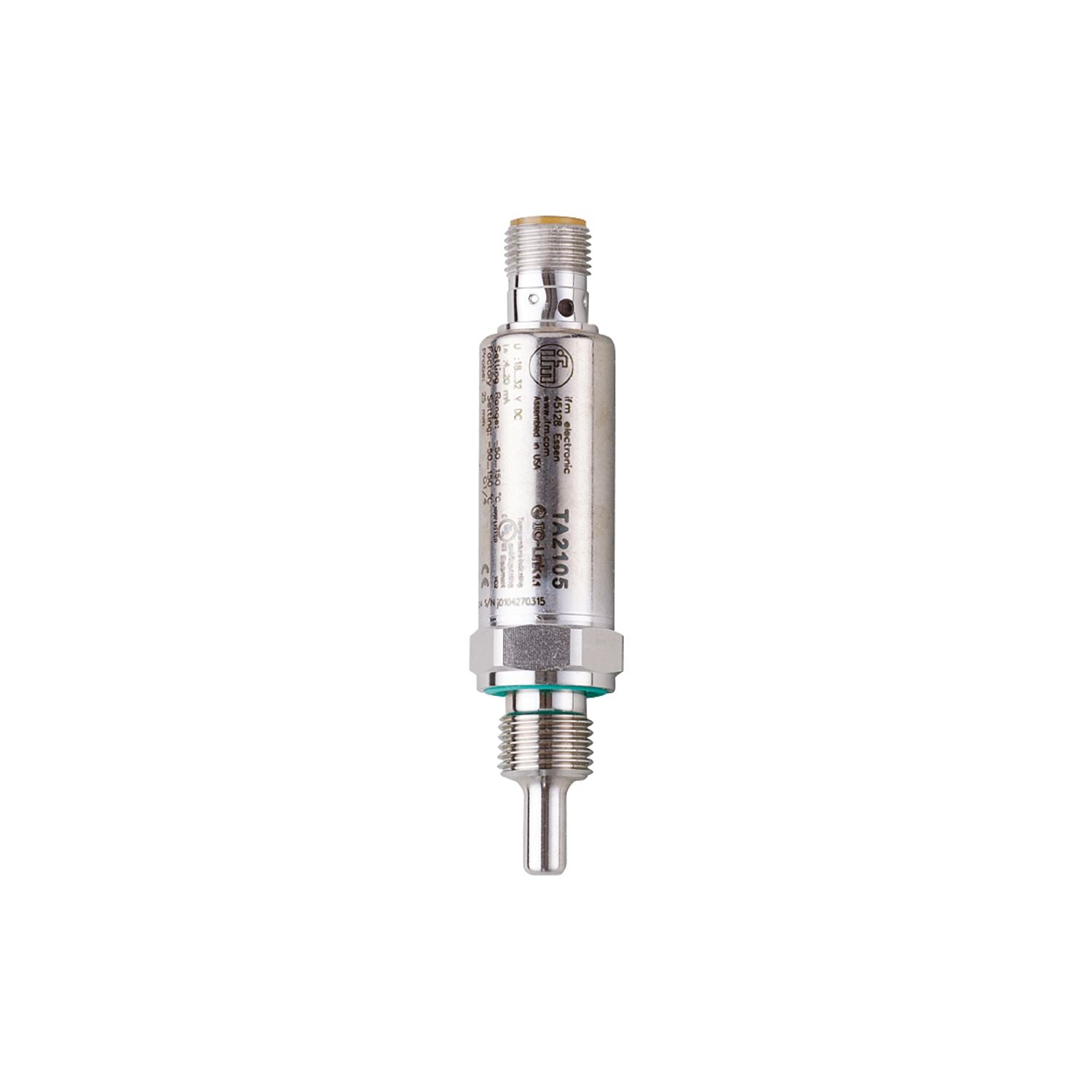

TA2105 IFM Temperature Transmitter | Industrial Temperature Sensor | krishna-machinery-tools-kmt
Number of inputs and outputs Number of analogue outputs: 1 Measuring range[°C] -50...150 Communication interface IO- Process connection threaded connection G 1/4 external thread Installation length EL[mm] 25 Application Special feature Gold-plated contacts Measuring element 1 x Pt 1000; (to DIN EN 60751, class A) Media liquids and gases Pressure rating 400 bar 40 MPa Note on pressure rating sensor When mounted in adapters the specifications of the adapter data sheet apply. Electrical data Operating voltage[V] 18...32 DC; ("supply class 2" to cULus) Current consumption[mA] < 50 Protection class III Reverse polarity protection yes Power-on delay time[s] 1 Inputs / outputs Number of inputs and outputs Number of analogue outputs: 1 Outputs Total number of outputs 1 Output signal analogue signal; IO-; (configurable) Number of analogue outputs 1 Analogue current output[mA] 4...20 Max. load[?] 250; ((18...19 V); 19...32 V: 300 ?) Short-circuit protection yes Overload protection yes Measuring/setting range Probe length L[mm] 12 Measuring range[°C] -50...150 Factory setting -50...150 °C Resolution Resolution of analogue output[K] 0.04 Accuracy / deviations Precision analogue output[K] ± 0,3 + (± 0,1 % MS) Temperature coefficient[% of the span / 10 K] 0,1; (in case of deviation from the reference condition 25 ± 5 °C) Response times Dynamic response T05 / T09[s] 1 / 3 Interfaces Communication interface IO- Transmission type COM2 (38,4 kBaud) IO- revision 1.1 Operating conditions Ambient temperature[°C] -25...80 Storage temperature[°C] -40...100 Protection IP 67; IP 68; IP 69K Tests / approvals EMC DIN EN 61000-6-2 Shock resistance DIN IEC 68-2-27 50 g (11 ms) Vibration resistance DIN IEC 68-2-6 20 g (10...2000 Hz) MTTF[years] 572 UL approval UL approval no. K002 High precision across the entire temperature measurement range Particularly good response dynamics and very short power-on delay time Robust stainless steel housing with very high pressure rating High protection rating for the requirements of harsh industrial environments
