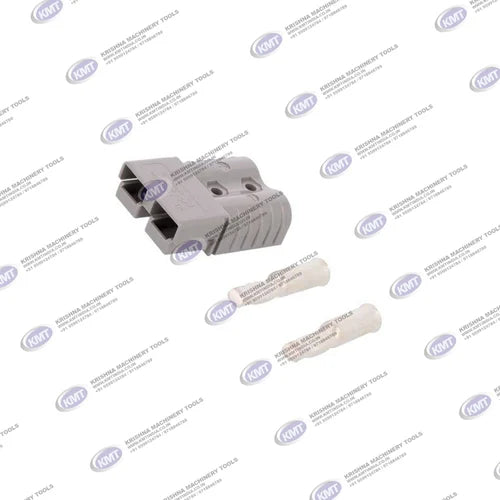

SB 120 Anderson Bekalite Connector | krishna-machinery-tools
AMP Rating AC/DC 240 Voltage Rating (Steady State) 600 V Breaking Capacity 120 Amp/10 cycles Wire Size Tested 50 mm2 Contact Series Tested 1323 Temperature Range -20 degree C to 105 Degree C Voltage Rating (Breaking Capacity) 220 VDC Like the other Multipole connectors, the SB®120 offers color-coded mechanically keyed housings. Keys can be used to identify and separate different circuits, or prevent users from accidentally cross mating different voltages. Wires sizes from #10 (5.3 mm²) to #1 (42.4 mm²) are held in the second smallest SB® housing. • New extended range contacts expand wire size up to #1 AWG (42.4 mm²) Allows UL rated currents up to 240 amps • Chemical resistant housing option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance • Panel mounting grooves With use of mounting clamps, can be easily mounted through panels
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
