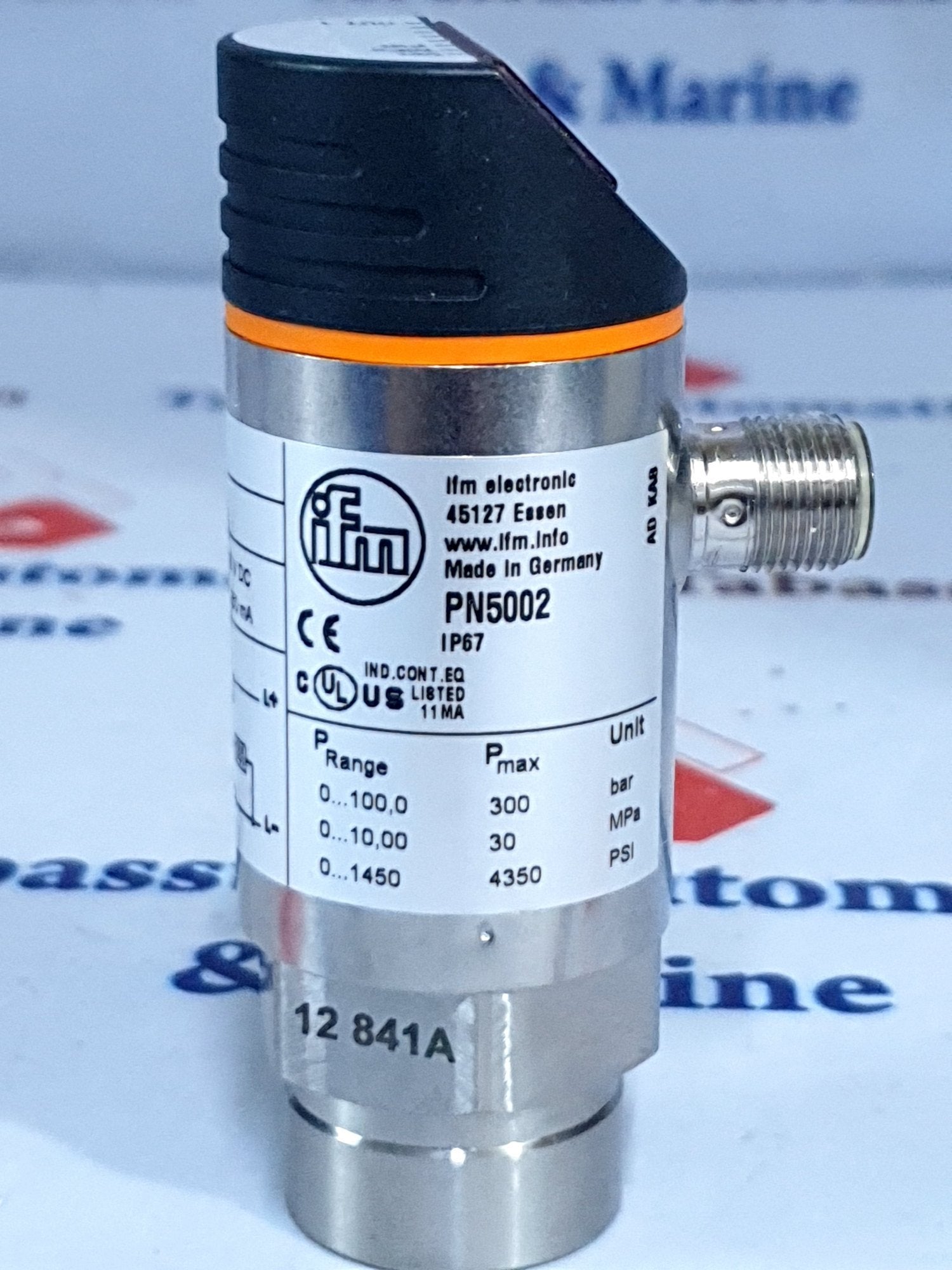

PN5002 IFM Pressure Sensor | Industrial Pressure Sensor – krishna-machinery-tools-kmt

Digital Pressure Sensor | 0–100 bar | G 1/4 Thread | PNP | 1 Output | LED Display

High-performance pressure monitoring for industrial liquid and gas systems.

Designed for demanding industrial applications, this digital pressure sensor offers exceptional accuracy, durability, and long-term stability. With a wide measuring range up to 100 bar and robust construction, it’s ideal for monitoring pressure in hydraulic, pneumatic, and fluid systems.

Key Features:

• Measuring Range:
  0...100 bar | 0...1450 psi | 0...10 MPa
  Suitable for both liquids and gases (use with gases >25 bar only on request)

• Output Configuration:

  • 1 digital output (PNP)

  • Switching signal (NO/NC, parameterizable)

  • Max switching current: 250 mA

  • Max voltage drop: < 2 V

  • Switching frequency: < 170 Hz

• Setpoint & Reset Range:

  • Setpoint (SP): 1...100 bar

  • Reset point (rP): 0.5...99.5 bar

  • Resolution steps: 0.5 bar | 10 psi | 0.05 MPa

  • Factory default: SP1 = 25.0 bar, rP1 = 23.0 bar

Electrical Specifications:

• Operating Voltage: 18...36 V DC (SELV/PELV compliant)

• Current Consumption: < 50 mA

• Protection Features:

  • Reverse polarity protection

  • Overvoltage protection (< 40 V)

  • Short-circuit protection (pulsed)

  • Integrated watchdog function

  • Power-on delay: 0.3 s

  • Protection class: III

Mechanical & Environmental Specs:

• Process Connection: G 1/4 internal thread

• Pressure Rating: 300 bar (4350 psi | 30 MPa)

• Bursting Pressure: 650 bar (9400 psi | 65 MPa)

• Medium Temperature Range: -25 to 80 °C

• Media Compatibility: Liquids and gases

• Durability: >100 million pressure cycles

• Special Feature: Gold-plated contacts for reliable conductivity

User Interface & Display:

• Bright 4-digit LED display for clear pressure reading

• Country-specific units (bar, psi, MPa) selectable

• Memory function stores highest measured pressure

This sensor is the ideal solution for industries requiring consistent pressure control, safety, and performance. Built to last with premium materials and advanced electronics, it delivers precision where it matters most.
