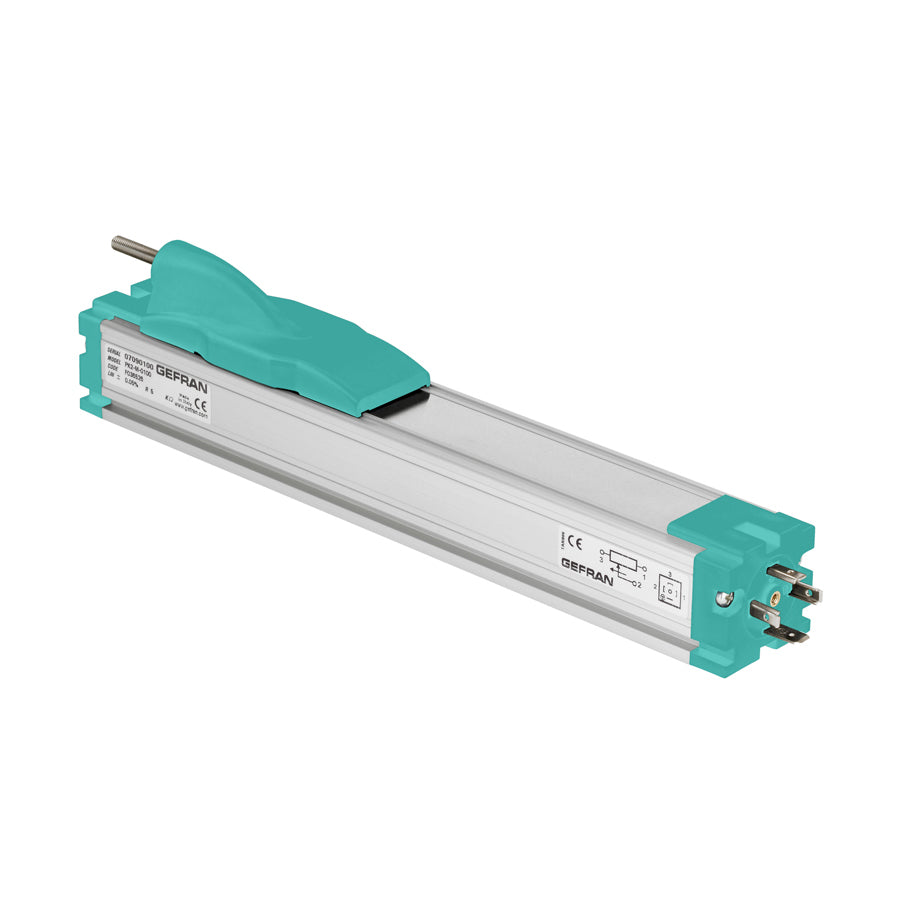

PK-M-0360 Gefran Linear Transducer | Industrial Automation Sensor – krishna-machinery-tools-kmt

Gefran PK-M-0360 Linear Scale Sensor | High-Precision Position Transducer | IP67

Brand: Gefran
Model: PK-M-0360
Type: Linear Scale / Position Transducer
Material: Stainless Steel
Color: Silver
Usage/Application: Industrial
Length: 10 mm
Weight: 30 g
Max Working Speed: 10 m/s
Frequency: 50 Hz
Voltage: 10–30 V DC
Output Voltage: 30 V
Cable Length: 2 m
Protection Class: IP67 (Electrical connection area: IP40)
Power Supply: 30 V
Repeatability: 0.01 mm
Resolution: Infinite
Life Expectancy: >25 million m strokes or >100 million maneuvers (whichever is less)
Displacement Force: ≤ 1.2 N
Acceleration: Up to 200 m/s² (20g)
Shock Resistance: 50 g, 11 ms
Vibration Resistance: 5–2000 Hz, Amax = 0.75 mm, amax = 20 g
Electrical Connection:

• PK M: DIN43650 4-pin connector

• PK B: DIN43322 5-pin connector

🛠 Product Overview:

The Gefran PK-M-0360 Linear Scale Sensor offers top-tier precision and reliability for industrial motion and position monitoring applications. Designed with stainless steel construction and engineered for high-speed movement (up to 10 m/s), this sensor delivers consistent, repeatable readings in even the most demanding environments.

✅ Key Features:

• High Accuracy: Independent linearity within ±0.05% over the effective electrical stroke

• Durable Build: Stainless steel body with IP67-rated sealing for harsh industrial settings

• Superior Repeatability: Down to 0.01 mm for exact positioning tasks

• Versatile Connectivity: Supports 4-pin and 5-pin DIN connectors

• Extreme Endurance: Rated for 25 million strokes or 100 million maneuvers

• Compact & Lightweight: Ideal for space-constrained installations

Whether for plastic molding machines, automation systems, or heavy-duty industrial operations, the Gefran PK-M-0360 is the perfect choice for accurate and reliable linear displacement sensing.
