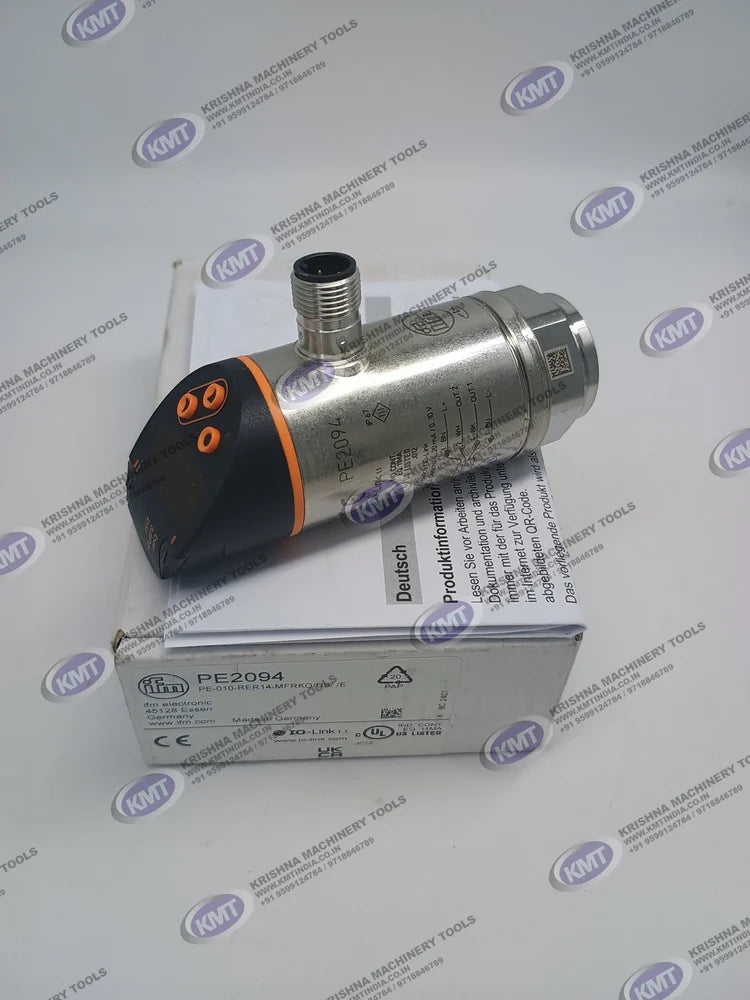

IFM PE2094 Pressure Sensor with Display – 1-10 Bar, IO-, G 1/4 Thread

Upgrade your fluid system monitoring with the IFM PE2094 Pressure Sensor, designed for precision, durability, and ease of integration. This high-performance sensor is engineered to deliver accurate pressure readings in liquid media across a range of 1 to 10 bar, making it ideal for demanding industrial applications.

Key Features:

• Wide Measuring Range: 1–10 bar for versatile application across various liquid systems.

• Dual Output: Features two switching outputs – one configurable as an IO- and the other as an analogue 4–20 mA output.

• Fast Response Time: Lightning-fast response of 1.5 ms ensures real-time monitoring and control.

• Clear Visual Display: Integrated red/green LED display provides immediate status visibility, enhancing operational safety.

• Flexible Installation: Rotatable process connection with G 1/4 internal thread allows easy alignment in tight spaces.

• Rugged Build: Constructed with robust stainless steel housing for use in harsh industrial environments.

• Long-Term Stability: High overload protection ensures reliable performance over time.

• User-Friendly Setup: Configure via intuitive push buttons or remotely through IO- for streamlined setup and maintenance.

Specifications:

• Part Number: PE2094

• Brand: IFM

• Output Signal: 4–20 mA

• Supply Voltage: 18–30 VDC

• Interface: IO-

• Response Time: 1.5 ms

• Material: Stainless Steel

• Process Connection: G 1/4 internal thread

• Mounting Type: Adapter

• Operating Temperature: -25 to +70 °C

• Protection Rating: IP67

Ideal for applications requiring reliable pressure monitoring in liquid systems, the IFM PE2094 ensures accurate readings, fast communication, and a user-friendly interface — all in a compact, industrial-grade design.
