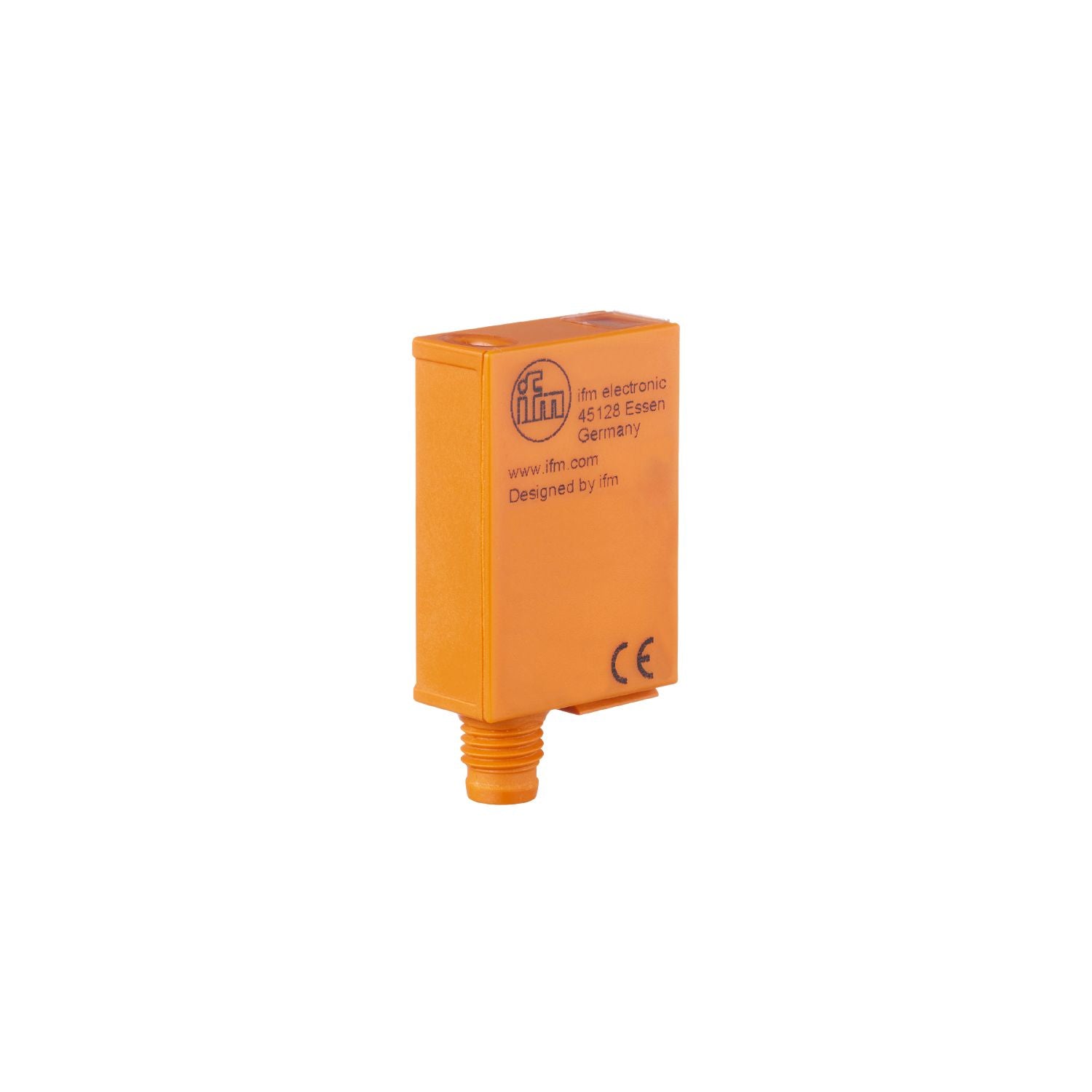

OJ5044 IFM Diffuse Reflection Sensor | krishna-machinery-tools-kmt
Type of light red light Housing rectangular Application Special feature Background suppression Function principle Diffuse reflection sensor Electrical data Operating voltage[V] 10...30 DC Current consumption[mA] 25 Protection class III Reverse polarity protection yes Type of light red light Wave length[nm] 660 Outputs Electrical design PNP Output function light-on/dark-on mode; (programmable) Max. voltage drop switching output DC[V] 2.5 Permanent current rating of switching output DC[mA] 200 Switching frequency DC[Hz] 1000 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Detection zone Range[mm] 15...400; (white paper 200 x 200 mm 90% remission) Range adjustable yes Max. light spot diameter[mm] 18 Light spot dimensions refer to Range Background suppression available yes Operating conditions Ambient temperature[°C] -25...60 Protection IP 67 Tests / approvals EMC EN 60947-5-2 MTTF[years] 556 Mechanical data Weight[g] 35 Housing rectangular Dimensions[mm] 35 x 24 x 11 Materials housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS Lens material PMMA Lens alignment front lens
