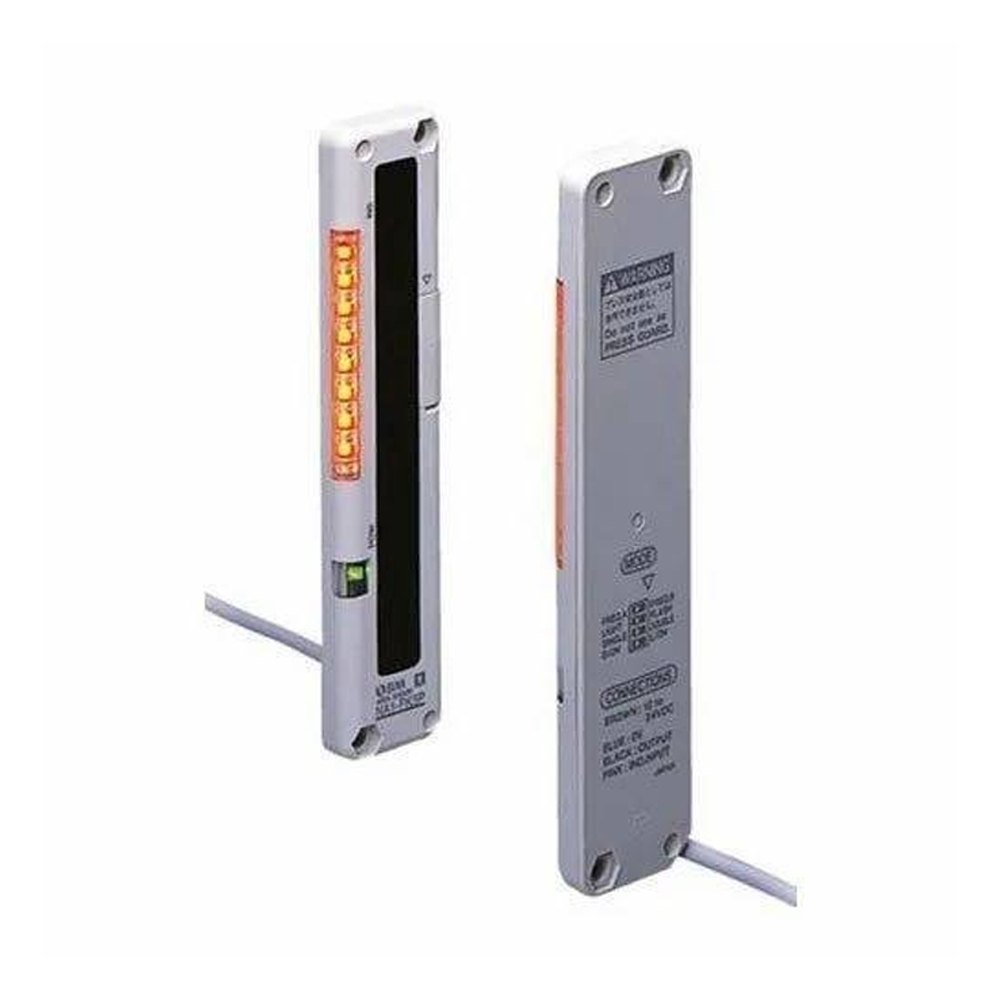

Panasonic NA1-PK5-PN Ultra-slim Body Area Sensor – Precision Object Detection for Compact Spaces

The Panasonic NA1-PK5-PN is a high-precision ultra-slim body picking sensor ideal for object detection in confined or limited spaces. With a sensing height of 100 mm and adjustable sensing range up to 1.2 m, this sensor is engineered for reliable, fast, and accurate detection.

⚙️ Technical Specifications:

• Brand: Panasonic

• Model Number: NA1-PK5-PN

• Product Type: Area Sensor

• Sensor Type: Picking Sensor

• Detection Range: Up to 5 meters

• Sensing Height: 100 mm (3.937 in)

• Sensing Range:

  • Standard: 0.1 to 1.2 m (0.328 to 3.937 ft)

  • SHORT mode: 0.05 to 0.5 m (0.164 to 1.640 ft)

• Accuracy: 100%

• Activation Current: 15 mA

• Active Area: 100 mm

• Frequency: 150 Hz

• Operating Temperature: -10°C to 55°C

• Ambient Temperature: -20°C to 70°C

• Output Type: PNP (Standard Type)

• Product Number / Part Number: NA1-PK5-PN

✅ Key Features:

• Ultra-slim design for compact installation spaces

• Fast detection with a response frequency of 150 Hz

• Adjustable sensing range for enhanced flexibility

• PNP output suitable for standard industrial applications

• High accuracy and reliable performance

• Wide ambient temperature tolerance ensures stability in varied environments

Note: The sensing range indicates the adjustable distance between emitter and receiver.
