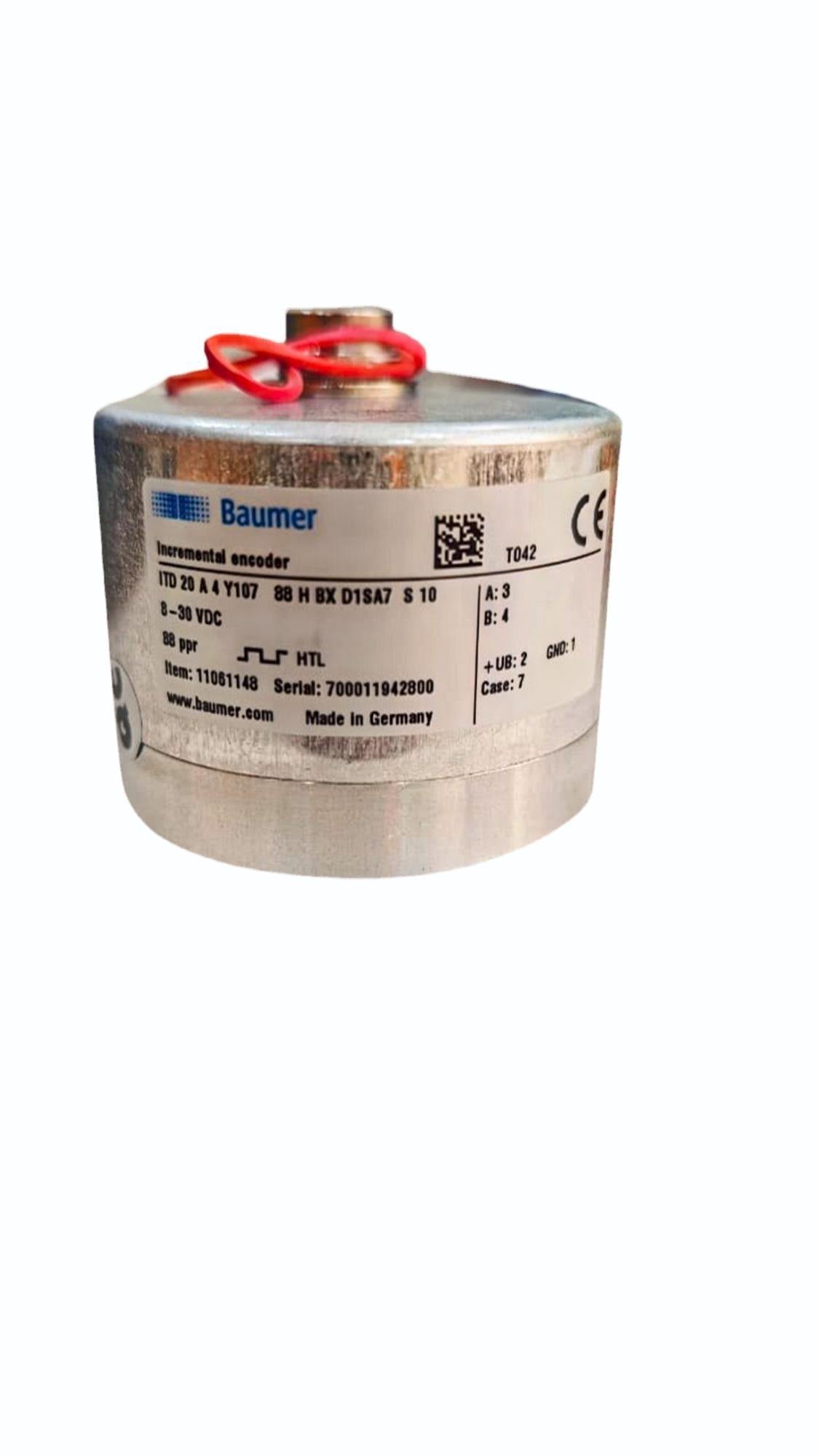

ITD-20-A-4-Y107 Baumer Incremental Encoder | Industrial Encoder – krishna-machinery-tools
Encoder with blind hollow shaft up to ø14 mm Max. 1024 pulses per revolution Optical sensing method Mounting by torque support TTL or HTL output signals Cable output radial or axial Voltage supply 5 VDC ±5 % 8...30 VDC Reverse polarity protection Yes Consumption w/o load ?100 mA Pulses per revolution 50 … 1024 Reference signal Zero pulse, width 90° Sensing method Optical Output frequency ?120 kHz Output signals A, B, N + inverted Output stages TTL linedriver (short-circuit proof) HTL push-pull (short-circuit proof) Interference immunity EN 61000-6-2 Emitted interference EN 61000-6-3 Size (flange) ø58 mm Shaft type ø8...14 mm (blind hollow shaft) Mounting kit 001 Protection EN 60529 IP 65 Operating speed ?8000 rpm ?5000 rpm IP 65 (>70 °C) Starting torque ?0.01 Nm (+20 °C) Material Housing: aluminium, black, powder-coated Shaft: stainless steel Operating temperature -20...+70 °C -20...+100 °C Relative humidity 90 % non-condensing Resistance EN 60068-2-6 Vibration 10 g, 55-2000 Hz EN 60068-2-27 Shock 100 g, 6 ms Connection Cable 1 m Weight approx. 260 g
