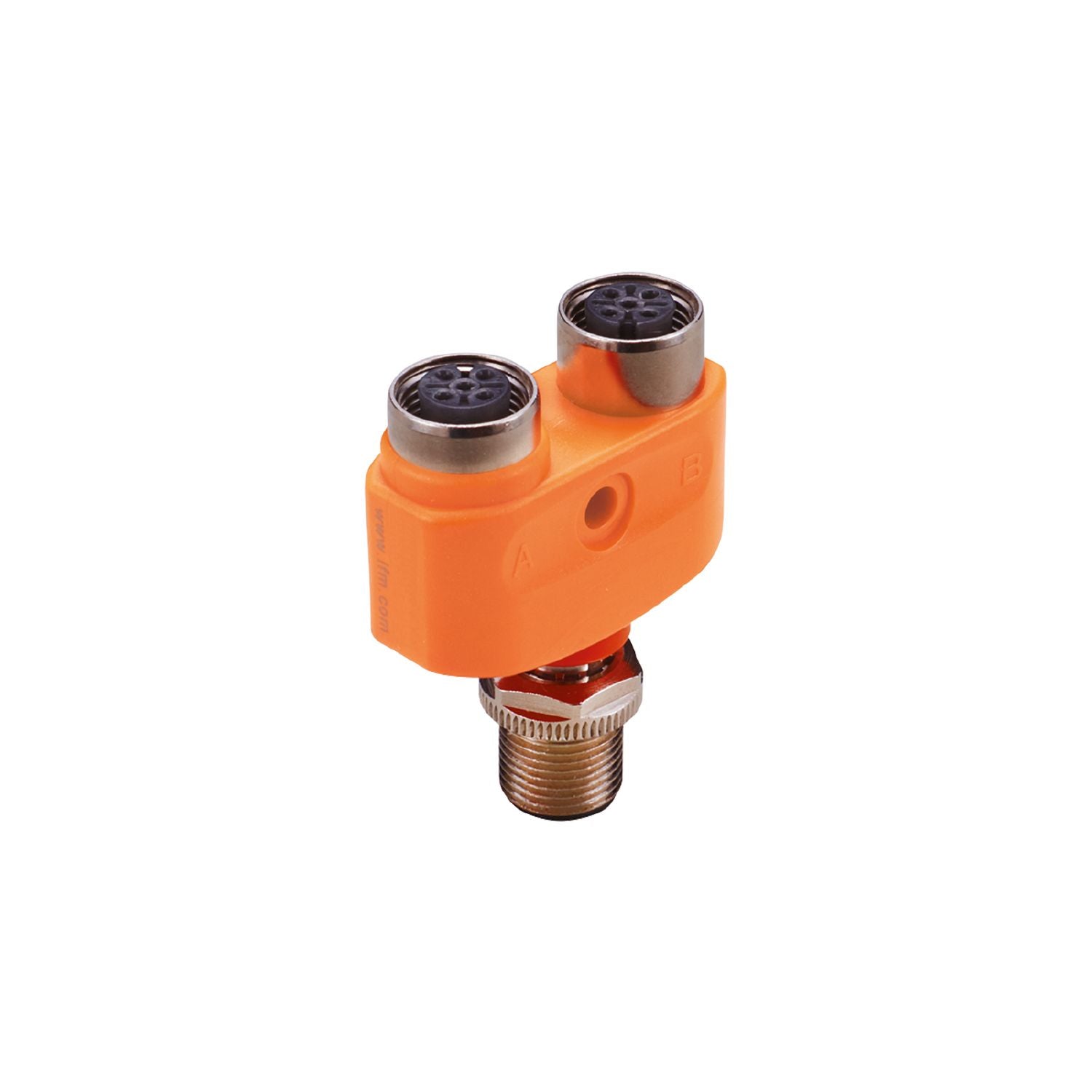

EBC114 IFM Y-Splitter Connector | krishna-machinery-tools
Operating voltage[V] < 60 AC/DC; (cULus: 30 AC / 42 DC) Protection class II Max. current load per module/slot[A] 4 Max. current load total[A] 4 Overall current rating (UL)[A] 3 Operating conditions Ambient temperature[°C] -25...90 Note on ambient temperature cULus: ...65 °C Storage temperature[°C] -25...55 Storage humidity[%] 10...100 Other climatic conditions for storage according to stated class 1K22/ DIN 60721-3-1 Protection IP 65; IP 67; IP 68; IP 69K Mechanical data Weight[g] 36.8 Materials housing: PA orange; Sealing: FKM Material nut brass, nickel-plated Remarks Pack quantity 1 pcs. Electrical connection - plug C Connection Connector: 1 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm For use in applications with many inputs and outputs where space is restricted Visual and tactile marking of the ports Resistant to oils and coolants High protection rating for the requirements of harsh industrial environments Mechanical end stop to protect the O-ring from destruction
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
