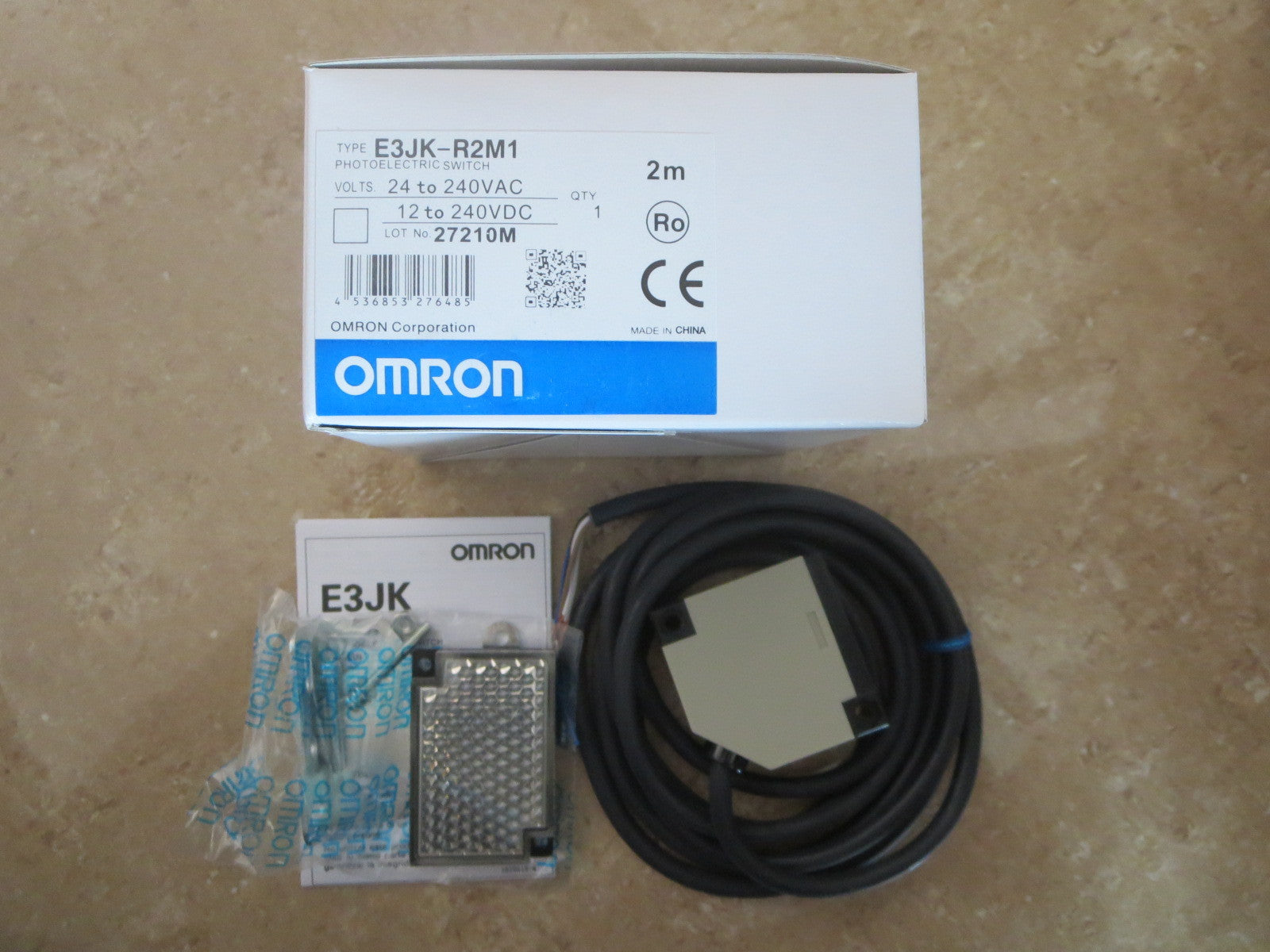

E3JK-R2M1-ZH Omron Photoelectric Sensor | krishna-machinery-tools

Material PBT Model No. E3JK-R4M1-ZH Brand Omron Product Type Sensor Sensor Type Photoelectric Sensor Current 40 mA Frequency 55 Hz Ambient illuminance -25 ......... +55 C Voltage 12 - 24 V Sensing distance 5 m Accuracy 100 % Built-in amplifier accepts wide supply voltage range. • Slim, space-saving construction measures only 50 x 50 x 17.4 mm. • Relay outputs with long life expectancy and high switching capacity (3 A, 250 V AC). • Polarized retroreflective type available for glossy or shiny object detection .Ambient illuminance Incandescent lamp: 3,000 lux max. Ambient temperature Operating: -25°C to 55°C, Storage: -30°C to 70°C (with no icing or condensation) Ambient humidity Operating: 45% to 85%RH, Storage: 35% to 95%RH (with no condensation) Insulation resistance 20 M? min. at 500 VDC Dielectric strength 1,500 VAC at 50/60 Hz for 1 minute Vibration resistance Destruction 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions Malfunction 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
