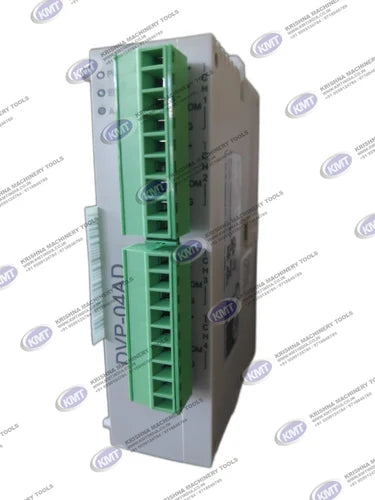

DVP04AD-S Delta PLC | Compact Analog Input PLC | krishna-machinery-tools-kmt

Mounting Type Panel Mount Communication Interface RS 485 Output Type Analog Brand Delta Usage/Application Industrial Number of Inputs 14 Digits Model No. DVP04AD-S Product Type PLC Weight 1.1 Kg Color White Power supply voltage 24 VDC(20.4VDC~28.8VDC) ( –15% ~ +20%) Analog input channel 4 channel / each module Analog input range ±10V ±20 mA Digital conversion range ±8000 ±4000 Resolution 14 bits(1LSB=1.25 mV) 13 bits (1LSB=5 µA) Input impedance 200 K??? 250? Overall accuracy ±0.5% of full scale of 25 ?(77 ?) ±1% of full scale during 0~55 ? (32~131 ?) Response time 3 ms × channels Isolation Method It has isolation between digital area and analog area. There is no isolation among channels. Absolute input range ±15 V ±32 mA Digital data format 2's complementary of 16-bit, 13 Significant Bits Average function Yes (CR#2~CR#5 can be set and setting range is K1~K4096) Self diagnose function Upper and lower bound detection / channels Communication mode (RS-485) MODBUS ASCII/RTU Mode. Communication baud rate of 4800 / 9600 / 19200 / 38400 / 57600 / 115200. For ASCII mode, date format is 7Bits, even, 1 stop bit (7 E 1). For RTU mode, date format is 8Bits, even, 1 stop bit (8 E 1). The RS-485 is disabled when the DVP04AD-S is connected in series to an MPU. Connect to DVP-PLC MPU in series The input point of the first analog expansion unit it connects from the near to the distant is from 0 to 7. The Max. is 8 modules and it won't waste digital I/O point
