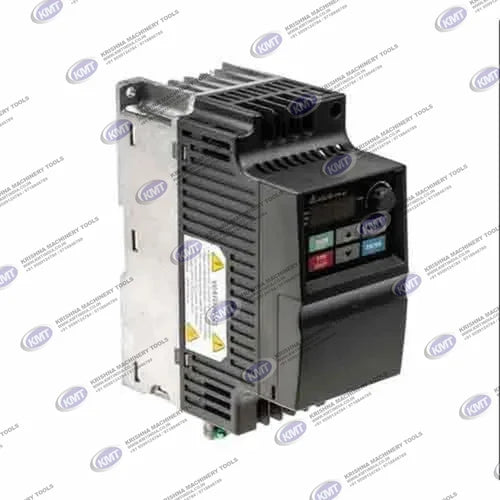

Delta VFD022ED21S – 2 HP Single-Phase Compact AC Drive with Advanced Encoder Support

The Delta VFD022ED21S is a powerful and compact AC drive designed for high-performance motor control in a wide range of industrial automation applications. With support for various encoder signals and precision control, this drive is ideal for systems that demand reliability and advanced feedback functionality.

🔧 Key Features:

• Power Rating: 2 HP

• Motor Power: 3 HP

• Phase: Single Phase

• Input Voltage: 12–24 VDC

• Input Frequency: 50 / 60 Hz

• Output Current: 15 mA

• Max Output Frequency: 100 kHz

• Ambient Temperature: -25°C to 70°C

• Weight: 85 g

⚙️ Encoder & Signal Support:

• Supported Encoders:

  • Incremental

  • SinCos (e.g., ERN1387)

  • EnDat 2.1 (e.g., ECN413 / ECN1313)

  • SICK HYPERFACE (e.g., SRS50 / 60)

• Pulse Output:

  • Push-pull output: up to 50 kHz

  • Line driver output: up to 100 kHz

• Vin Port: Adjustable voltage amplitude from push-pull output (Max 24 VDC)

🔌 Connectors & Switches:

• D-SUB (J3) and Terminal Block (TB2) connectors for easy integration

• SW1: Switch between internal/external power for frequency divided output

• SW2: Switch encoder power between 5 V / 8 V

🛠 Application Areas:

Perfect for automation systems requiring precise speed control and feedback—such as CNC machines, robotics, conveyor systems, and packaging equipment.
