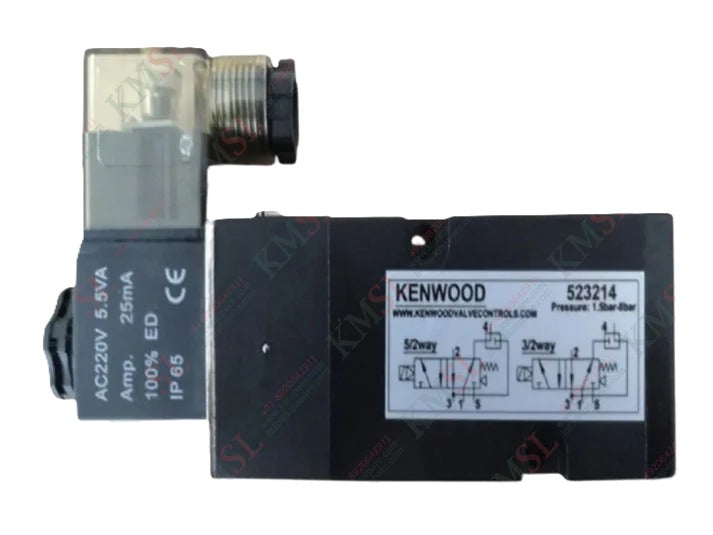

523214 Kenwood Solenoid Valve – Industrial Valve | krishna-machinery-tools-kmt

Brand Kenwood Coil Voltage Standard-24VDC Model Number Series-523214 Sizes 6mm(1/4 inch ) End Connections Standard-BSP Construction Body Aluminium deep anodized bar stock Construction Seat Nitrile Operating Pressure 8 bar Temperature of fluid -5 Degree C to 50 Degree C Coil insulation and Temperature Class 'F' insulated upto 155 Degree C Coil rating Continuously rated Enclosure SQ moulded coil lP65 Minimum flow factor(Kv) 1.1 for Double acting 0.6 for Single acting Fluids Lubricated and non-Lubricated air/gas filtered to 50 microns. Standard features: Reliable fast acting valve for multimillion operations. Lockable resettable manual override as a standard. Valve type 3/2-way(for single acting) or 5/2-way(for double acting) is selectable by using the orientation of plastic disc in No.4 port. coils are supplied with DIN connector and with LED as a standard. Application: When using as a 5/2-way valve, one can operate double acting actuator. When using as a 3/2-way valve, one can operate on single acting, spring return actuator. While exhausting, portion of air is reintroduced in spring chamber, Mostly used in process industry, specially on single acting and double acting 90 degree turn actuator.
